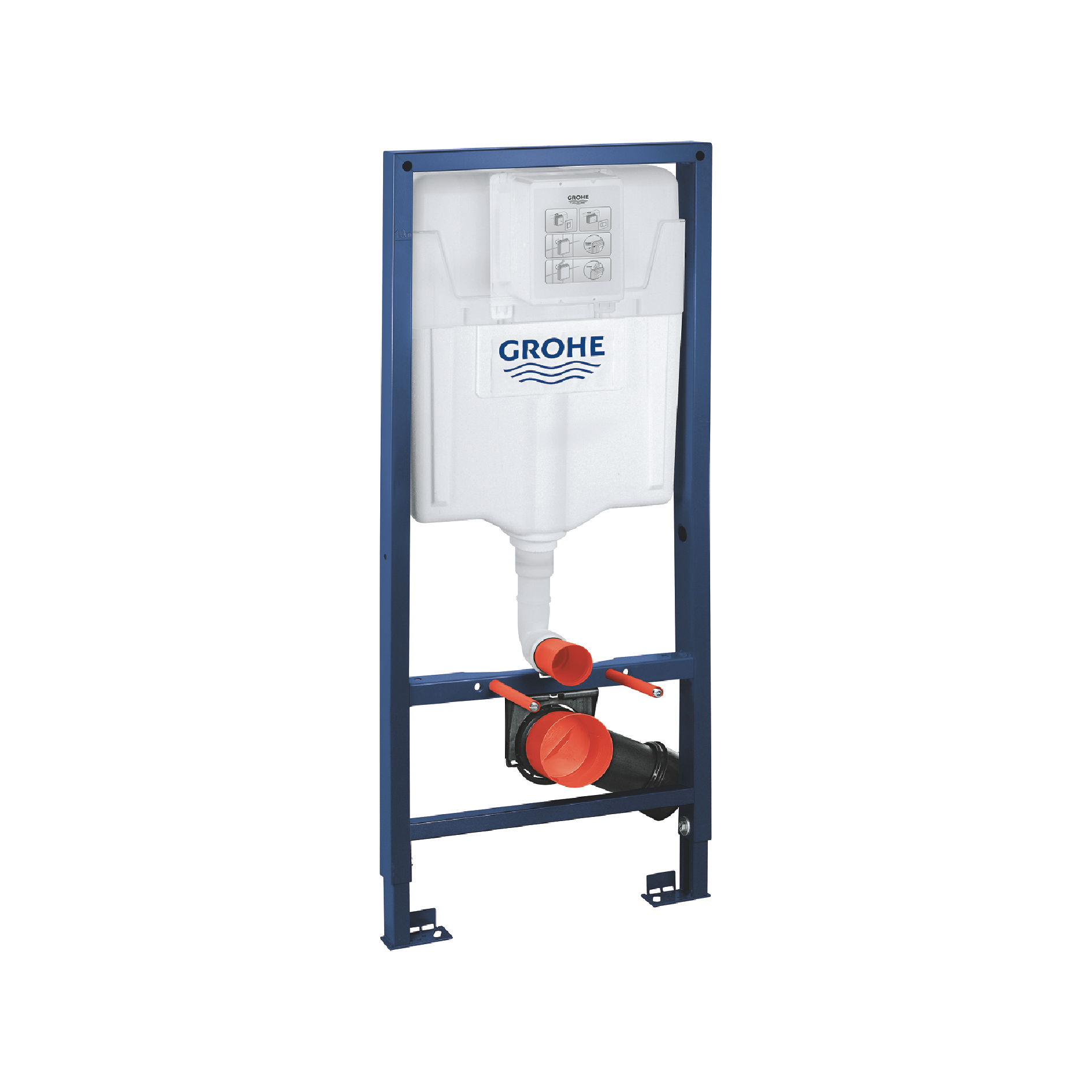

GROHE RAPID SL INSTALLATION SYSTEM – SWIFT TO FIT WITH A LOW-NOISE FLUSH AND WATER-SAVING FEATURE
The GROHE Rapid installation system for wall-hung toilets is the swift, hassle-free option for installing a wall-hung WC which also features some smart features you’ll love. The steel frame is certified to hold loads of over 400 kg for ultimate stability and it can be installed in front of a solid wall or within a stud wall in next-to-no-time thanks to the GROHE QuickFix system with ToolFree feature, which requires no tools to connect hose, inspection shaft and water supply. The GROHE EcoJoy dual flush system is kinder to the environment, reducing water consumption by up to 50%. Noise transmission to the building is kept to a minimum thanks to GROHE Whisper technology, engineered with low-noise fittings and separate plumbing. To install this product, please purchase the 3855800M wall brackets. Choose from over 130 attractive flush plate designs to complete the installation.
PRODUCT DESCRIPTION
• with flushing cistern GD 2, 6 – 9 l
• for on-the-wall installations or studded walls
• powder coated steel frame, self-supporting
• for dry-cladding, completely pre-assembled
• with fixed connections
• quick adjustment, lockable
• fixing material
• TÜV approved
• 2 WC fixing bolts
• fixing device for ceramic
• WC ceramics with small bearing area (less than 205 mm) require
additional accessory 38 779 000
• distance of fixing bolts 180/230 mm
• outlet bend Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm

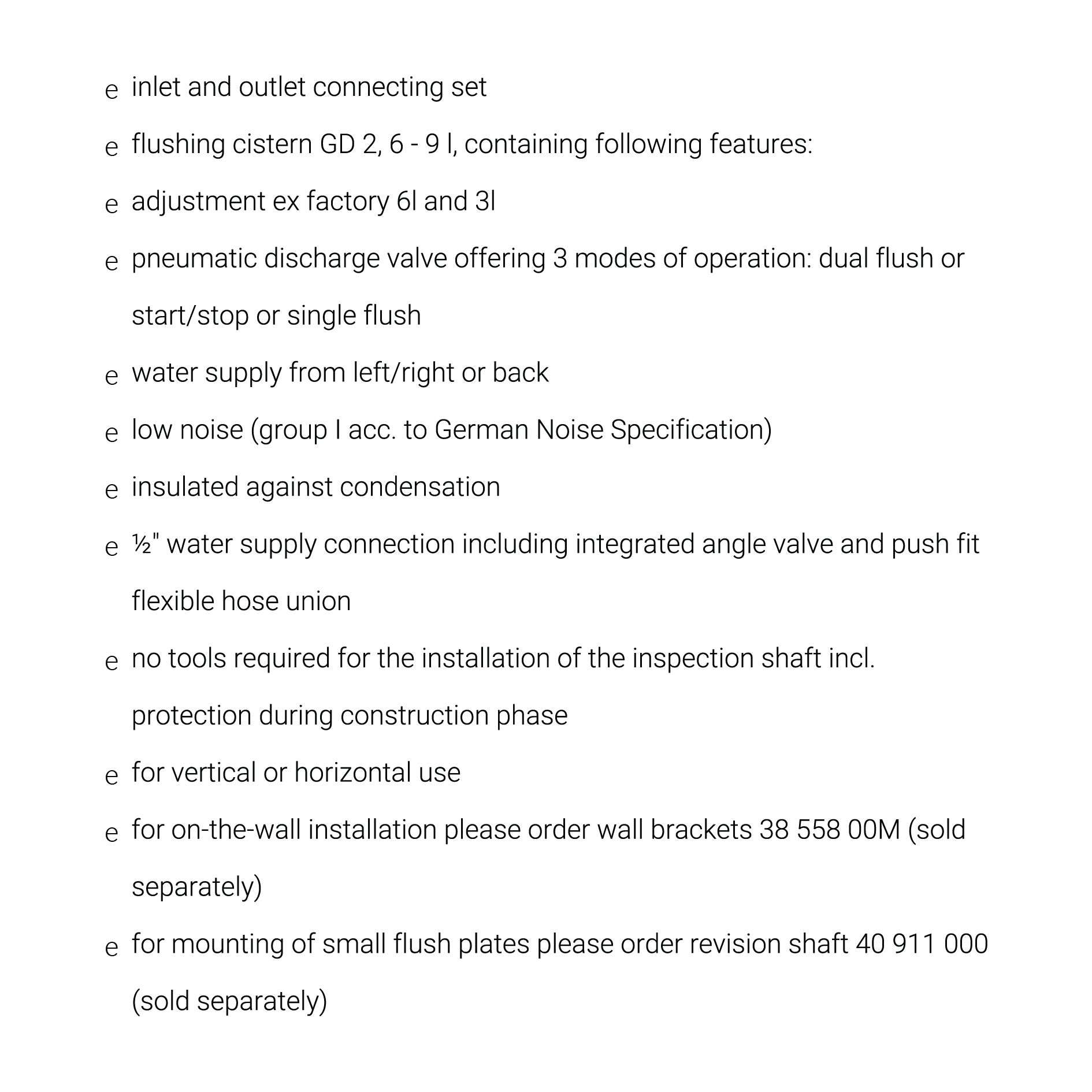

• inlet and outlet connecting set
• flushing cistern GD 2, 6 – 9 l, containing following features:
• adjustment ex factory 6l and 3l
• pneumatic discharge valve offering 3 modes of operation: dual flush or
start/stop or single flush
• water supply from left/right or back
• low noise (group I acc. to German Noise Specification)
• insulated against condensation
• ½” water supply connection including integrated angle valve and push fit
flexible hose union
• no tools required for the installation of the inspection shaft incl.
protection during construction phase
• for vertical or horizontal use
• for on-the-wall installation please order wall brackets 38 558 00M (sold
separately)
• for mounting of small flush plates please order revision shaft 40 911 000
(sold separately)
