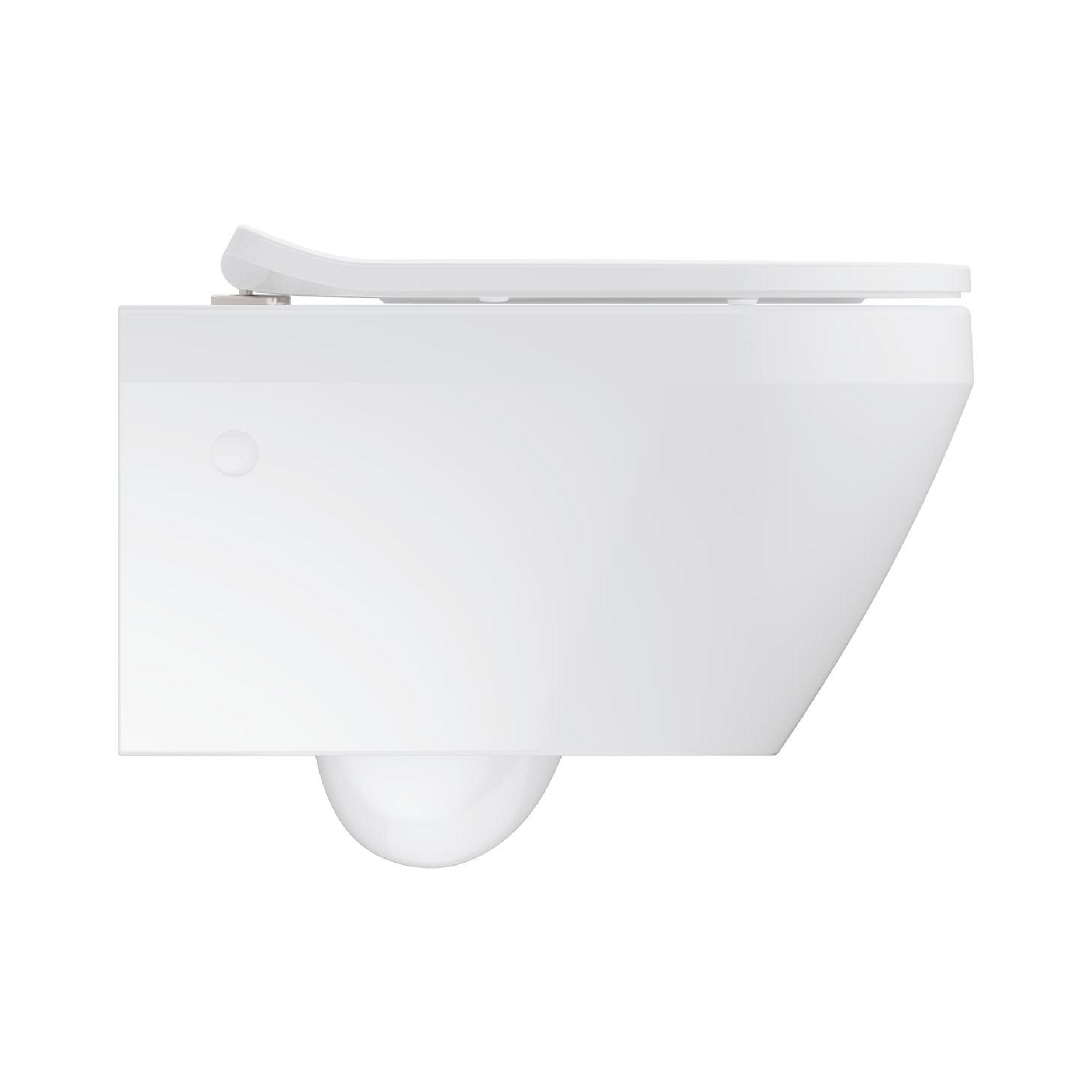

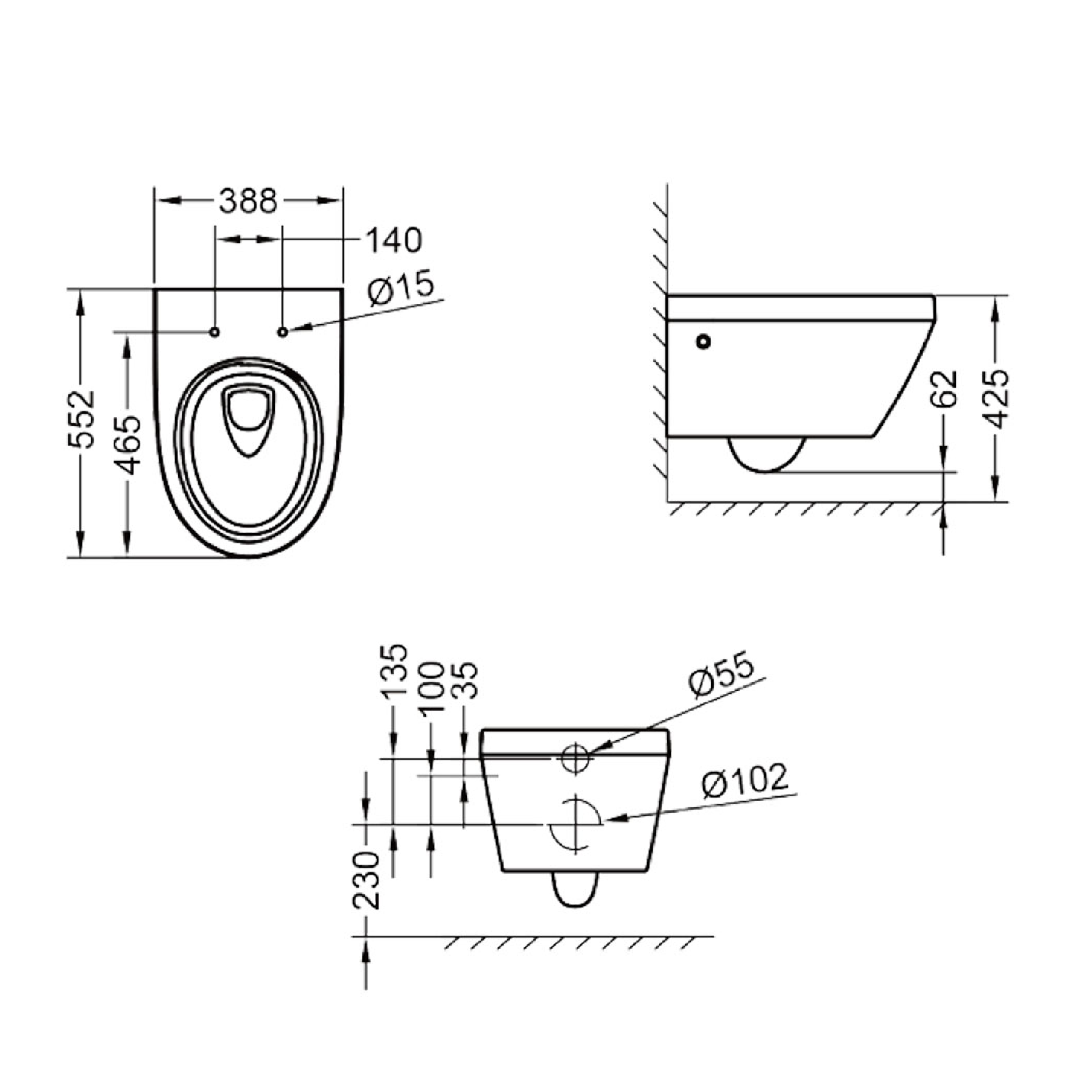

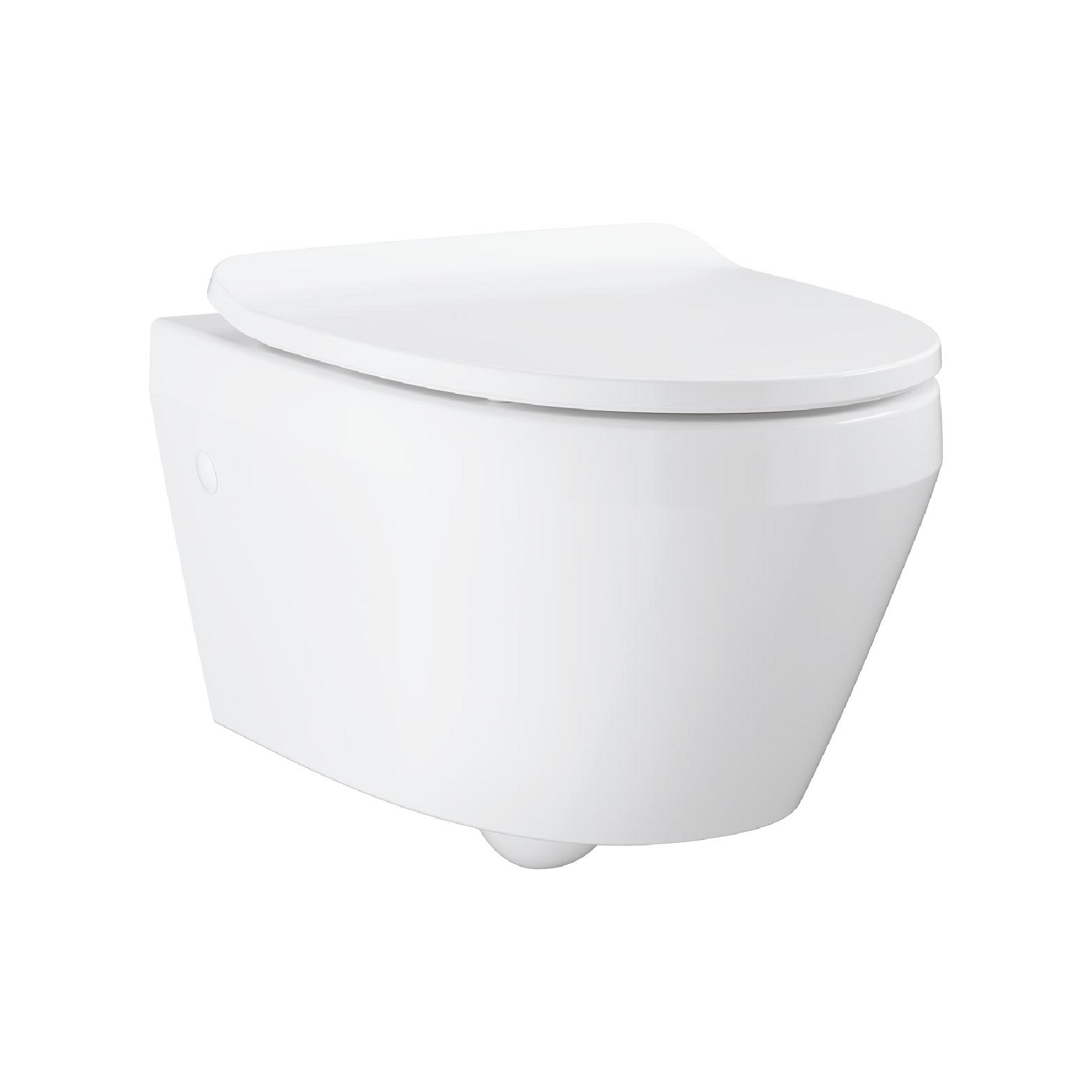

Model: 100999SH00 EuroCeramic 2.0 Wall Hung Toilet Set
- compatible with soft close seat and cover 101037SH00 (UF material) or 101036SH00 (PBT material)
- dimensions: 388 x 552 mm
- height: 363 mm
- wash down
- horizontal outlet
- for concealed cistern
- flush volume 3/4.5 l
- HyperClean
- rimless
- fully skirted bowl
- including fixation set
Model: 101037SH00 Euro Ceramic 2.0 WC seat and lid
- slim design
- soft close function
- quick release function
- detachable
- including fixation set
- stainless steel hinges
- easy fixation from above
- compatible with Euro Ceramic 2.0 floor standing and wall hung bowls

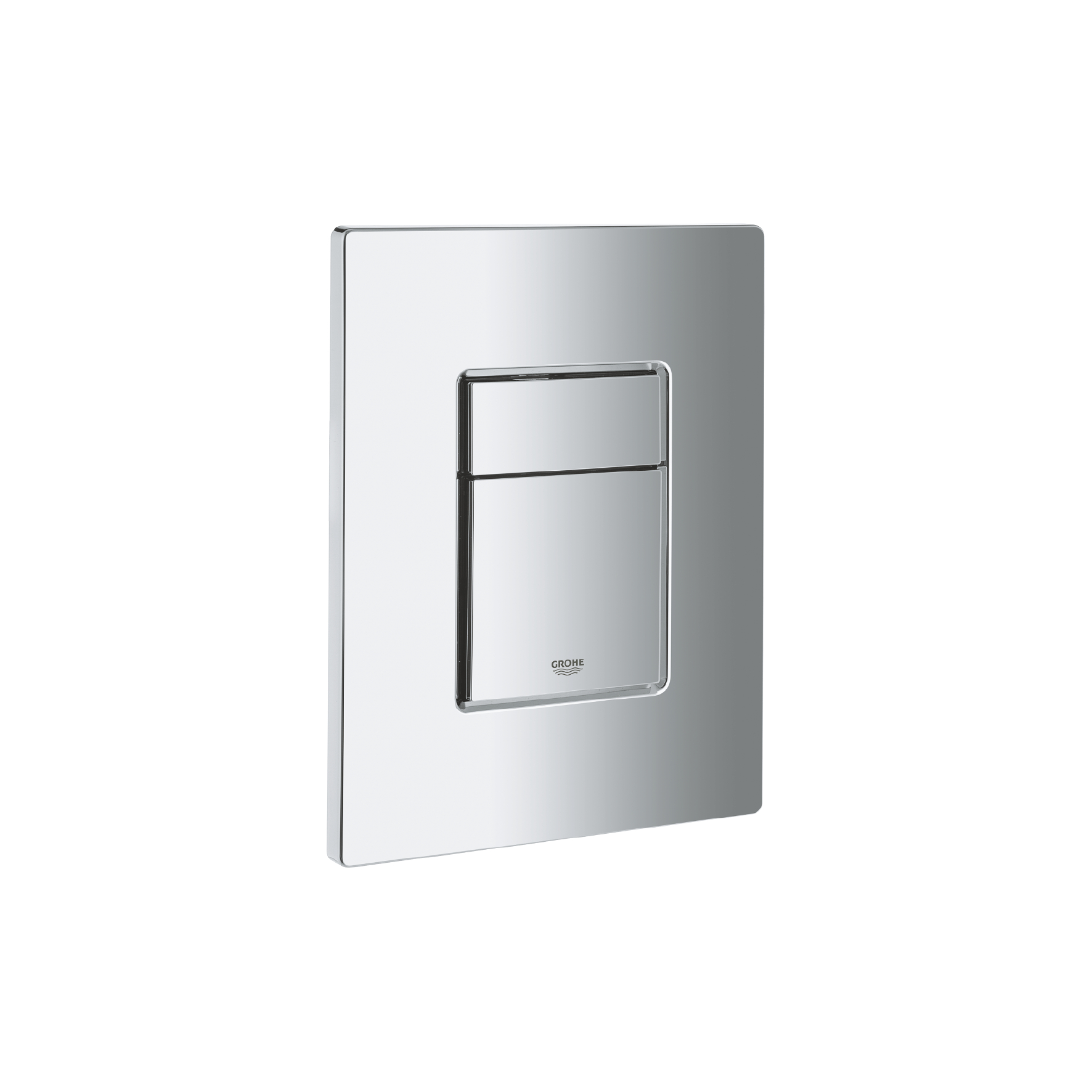

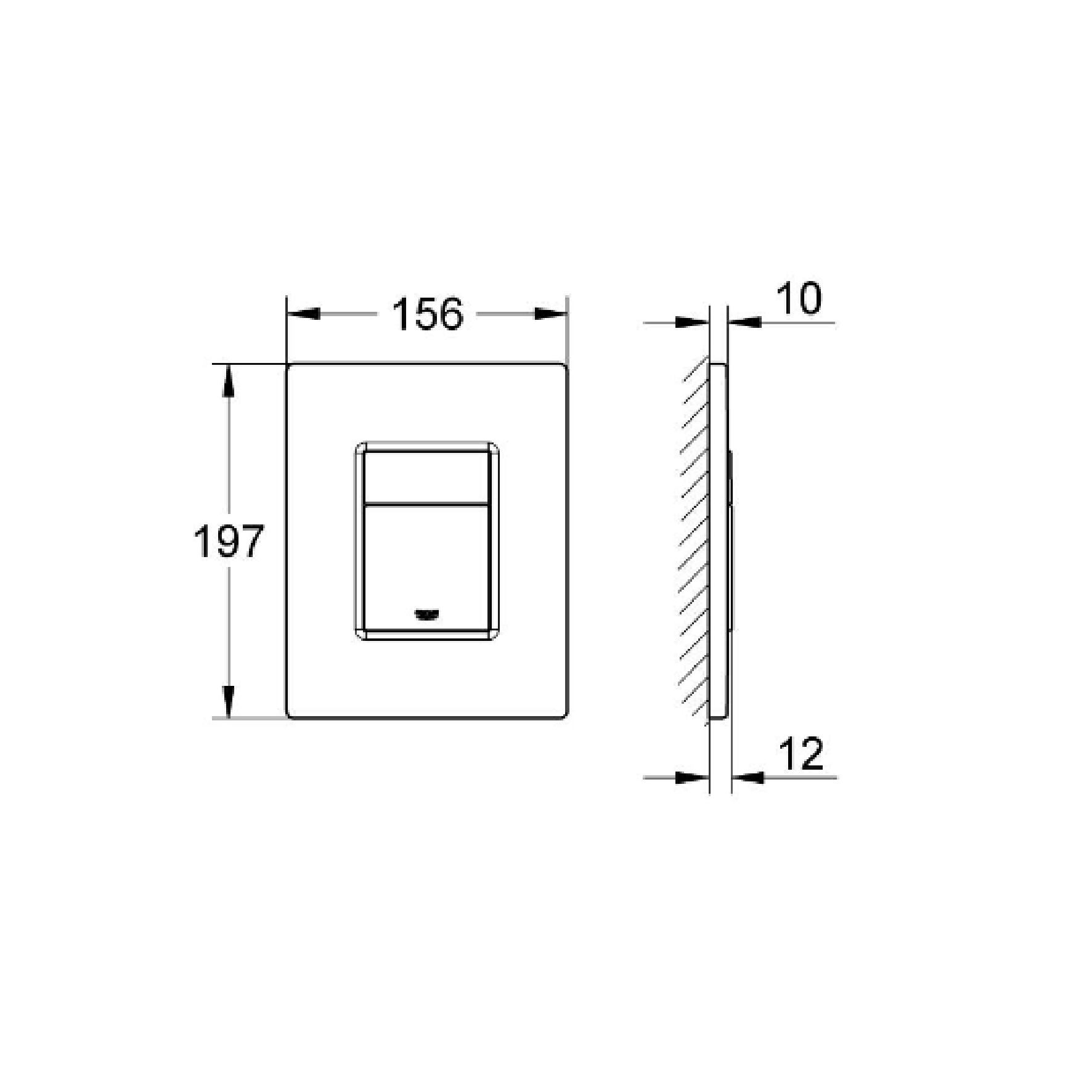

Model: Skate Cosmopolitan Flush plate
- 38732000 – Chrome / 38732P00 – Matt Chrome
- for dual flush
- for pneumatic discharge valve AV1
- vertical and horizontal installation
- 156 x 197 mm
- material: ABS
- GROHE Long-Life finish
- GROHE Water Saving – Less water, perfect flow
- for combination with Rapid SL and Uniset with GD 2 cisterns
- for use with Rapid SLX please order shaft 66 791 000 (sold separately)

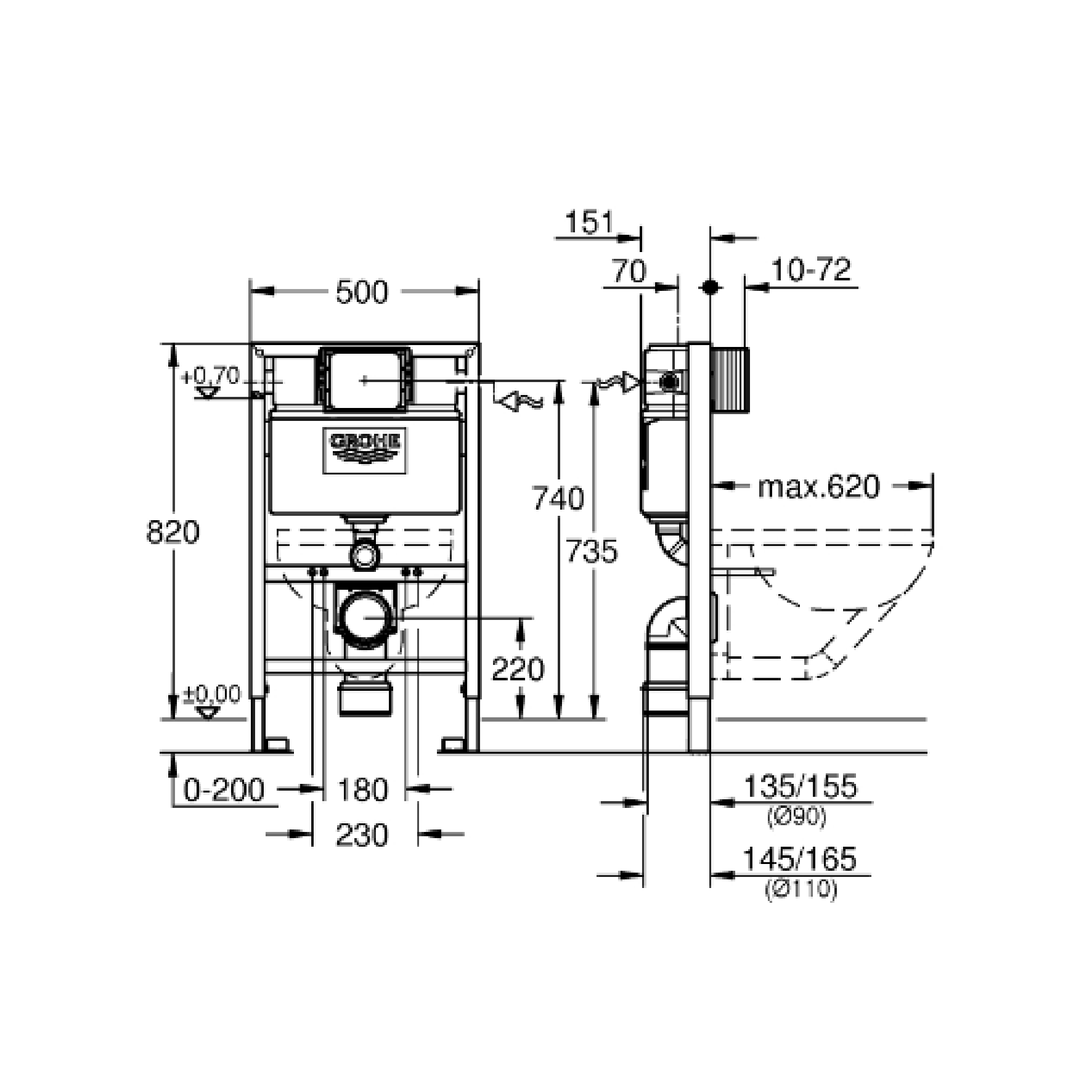

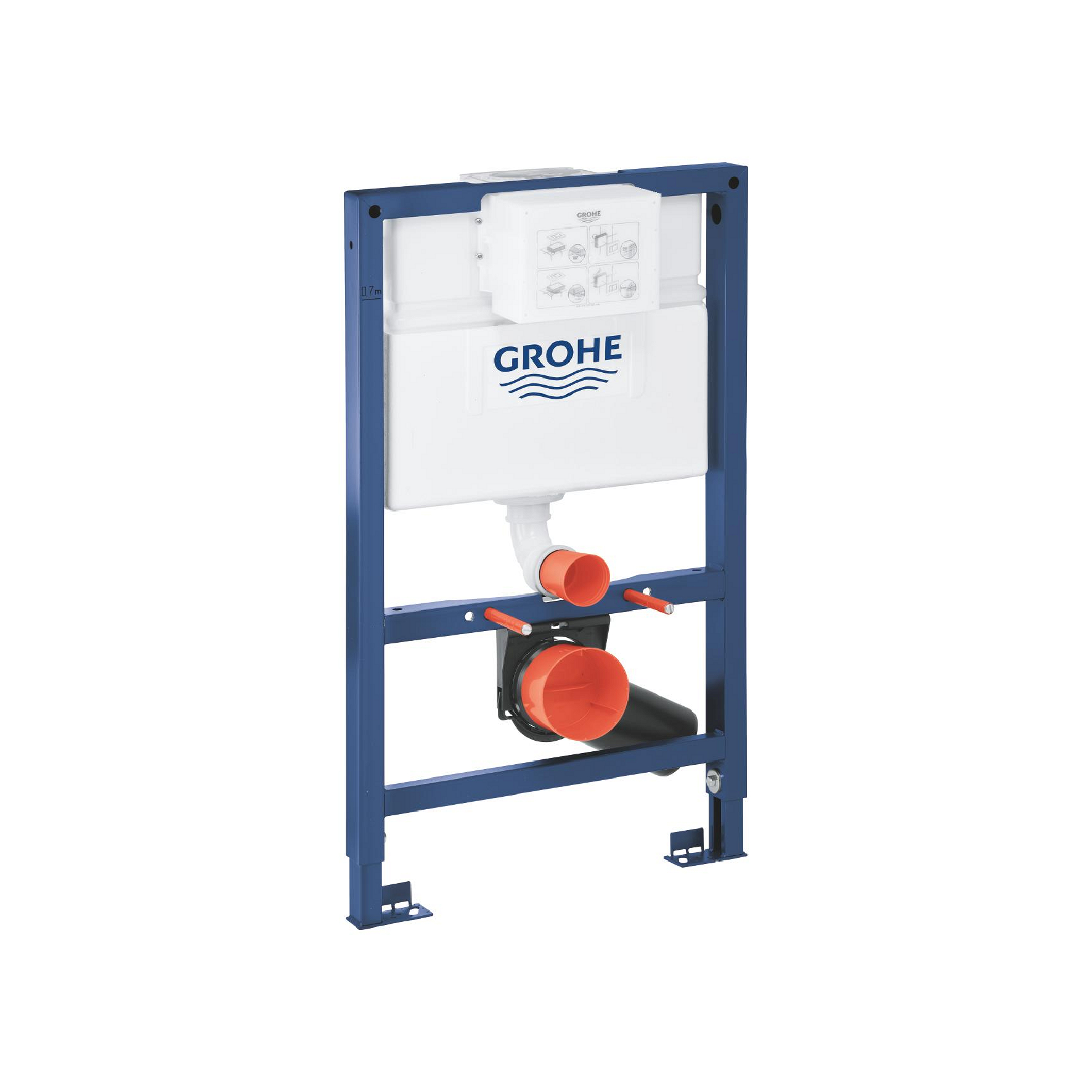

Model: 38526000 Rapid SL Element for WC, 0.82m installation height
- for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- with fixed connections
- TÜV approved
- 2 WC fixing bolts
- distance of fixing bolts 180/230 mm
- PP outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern containing the following features:
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- front or top actuation
- water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- 1/2″ water supply connection including integrated angle valve and push fit flexible hose union
- Shortable inspection shaft incl. protection during construction phase
- for on-the-wall installation 38 558 00M needs to be ordered separately
- for mounting of small flush plates please order revision shaft 40 950 000 (sold separately)
Model: 38528001 Rapid SL Element for WC, 01.13m installation height
- for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- with fixed connections
- TÜV approved
- 2 WC fixing bolts
- WC ceramics with small bearing area (< 205 mm) require 38 779 000
- distance of fixing bolts 180/230 mm
- outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, containing following features:
- adjustment ex factory 6 l and 3 l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- 1/2″ water supply connection including integrated angle valve and push fit flexible hose union
- no tools required for installation of inspection shaft
- for vertical or horizontal use
- for on-the-wall installation 38 558 00M need to be order seperately
- for mounting of small flush plates revision shaft 40 911 000 needs to be ordered separately
Model: 38 558 00M Rapid SL Wall union (order separately)
- for on-the-wall installations
- for fixing the elements at the brick-wall or in front of the studded wall
- steady vertical adjustment from 130 – 230 mm
- cladding for single or series installation
- fixing material
- 2 pieces
*Price doesn’t include installation.
*Top up $150 for PVD Color Flush Plates, kindly contact our customer service for a better assistance.
