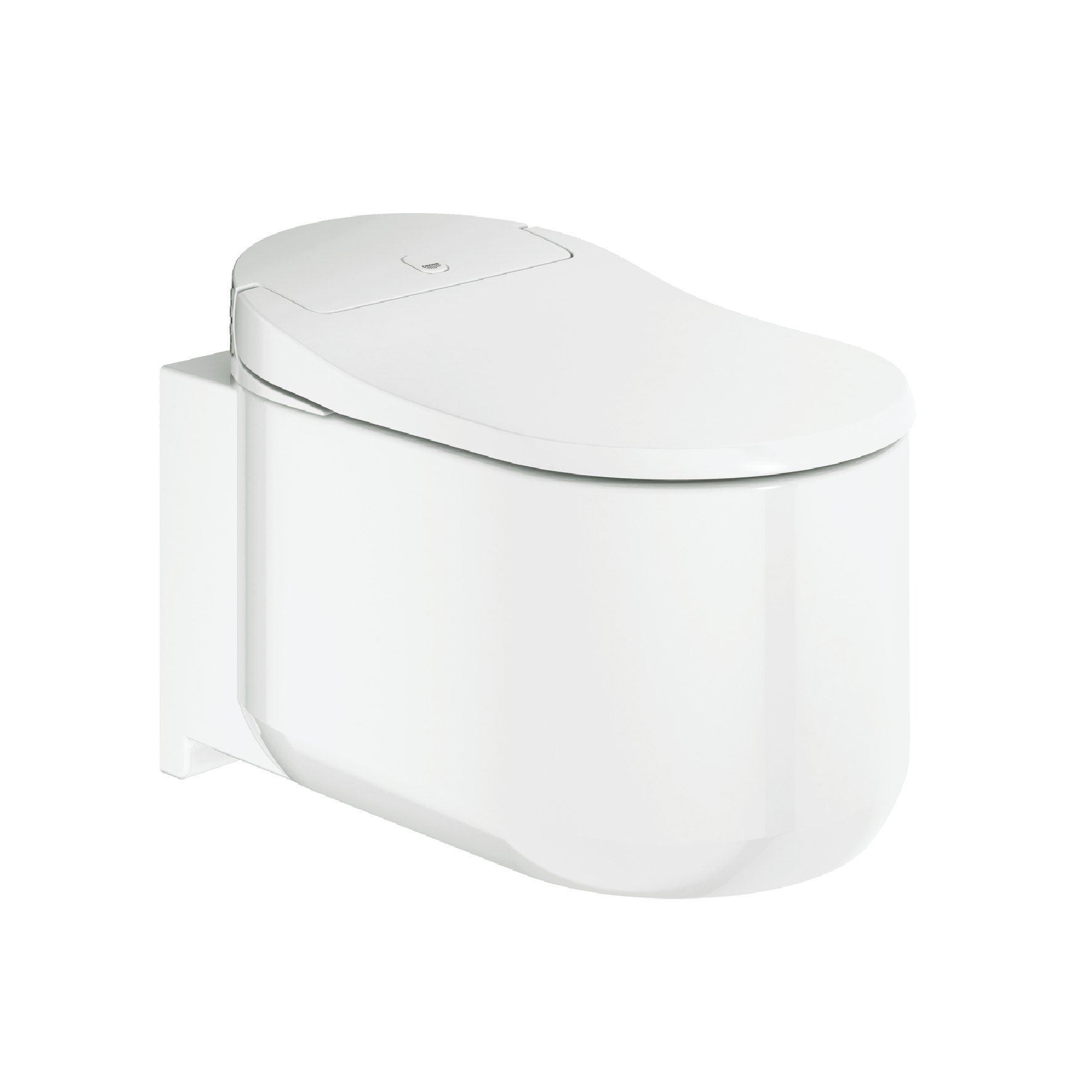

Grohe Sensia Arena WC Bundle: 39354SH1 + 3960100D + 3855800M + 46944001

Description

GROHE Hygiene Clean: with antibacterial glazing HyperClean (SIAA Kokin Japanese standard compliant) and non-stick coating AquaCeramic
GROHE power flush: rimless wash down jet WC with GROHE Triple Vortex flushing technology
2 dedicated adjustable spray arms (1 for anal area, 1 for lady spray)
separate water way for lady spray
oscillating spray (automatic forward and reverse motion of the spray)
pulsating spray for massage
adjustable spray intensity
automatic pre- and post-rinsing of spray nozzle with fresh water
integrated instant heater provides unlimited warm water
adjustable temperature
Additional functions:
warm air dryer with adjustable temperature
odor extraction with filter
PlasmaCluster function – ion technology
descaling function
Duroplast WC seat and lid with automatic opening/close function
infra-red user detection
seat control panel operation
power switch
inside bowl night light
hidden water supply and power supply connections
remote control
smart phone app for iOS and Android
includes:
noise protection sheet, mounting bases and washers
manual remote controller with wall-mounted holder
active carbon filter for odour absorption
water supply connection set for concealed cistern
nozzle guard
cable with system plug on device
pressure 0.05 – 1 MPa (0.5 – 10 bar)
nominal voltage 220-240 V AC
main frequency 50-60 Hz
type of protection IPX4
complies with EN 1717
CE approved
recommended in combination with a GROHE Rapid SLX element (1,13 m installation height)

with integrated socket for shower toilets (power)
ready for shower toilets (water)
small revision shaft for small flush plate
for wall installations or for installations on partition walls
sandblasted steel frame, freestanding
for dry cladding, completely pre-assembled
without outlet pipe
with fixed couplings
quick adjustment, to lock
fixing material
approved by TÜV
2 WC fixing screws
fixing device for ceramics
thread distance for fixing 180/230 mm
drain bend pipe Ø 90 mm
adjustable installation depth
reducer Ø 90/110 mm
set of connectors for water inlet and outlet
flushing cistern GDX, 6 l, containing the following features:
adjustment ex factory 4.5 l and 3 l
pneumatic drain valve with three modes of operation: two-volume flushing or start/stop or continuous operation
water supply from right, back or top
low noise level (class I according to the German noise classification)
insulated against condensation
1/2″ water connection with integrated angle valve and unit for
flexible pipe
no tool required to install revision box including protection for time of the construction phase
for vertical use
for on-the-wall installation please order wall brackets 38 558 00M (sold
separately)

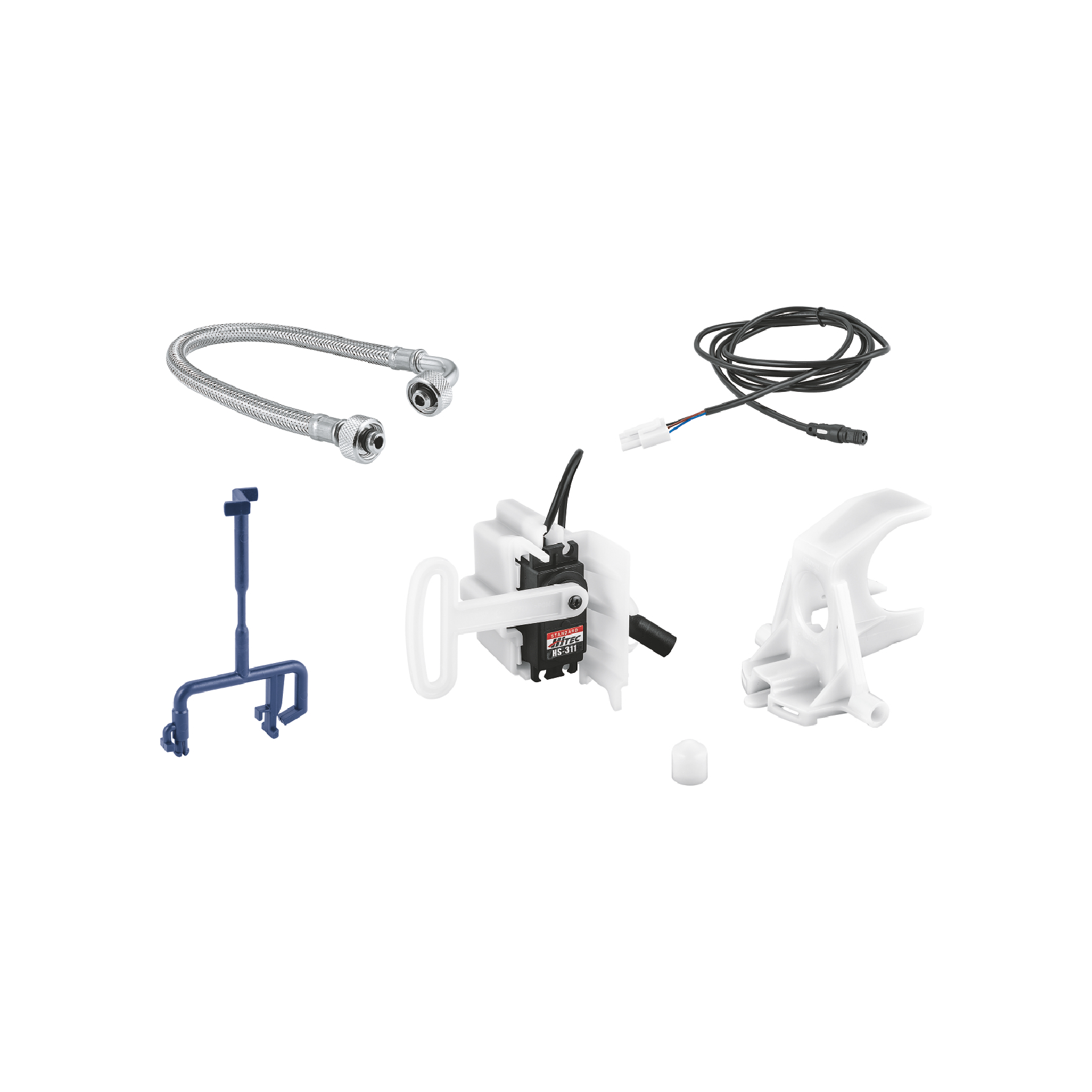

for Rapid SL with flushing cistern GD2 in combination with Sensia Arena shower toilet
consisting of:
servo motor for GD 2
actuation rod for flushing valve
cable and blind cap
flexible hose
WC actuation plate not included
CE approved

*The price does not include installation.
